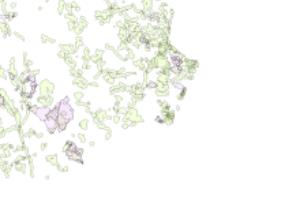

Name: Surface Waters with Impairments 2020 with Quarter Mile Buffer

Display Field: AUID

Type: Feature Layer

Geometry Type: esriGeometryPolygon

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><DIV STYLE="font-size:12pt"><P><SPAN>Quarter mile buffer of watersheds clipped to the state border for assessment unit IDs (AUID) that have one or more impairment related to storm water runoff in the 2016 305(b)/303(d). AUID are nearly synonymous with waterbody IDs (WBIDs) in that WBIDs are continuously updated whereas AUIDs are a version of the features tied to a particular Clean Water Act assessment cycle. AUIDs are the basic unit of record for conducting and reporting water quality assessments to EPA. All assessment units are based on 1:24,000 scale hydrography linked to the National Hydrography Dataset (NHD); the national coverage used by EPA. The 2020 AUIDs were the basis for the delineations in this file.</SPAN></P><P><SPAN /></P><P><SPAN>Watersheds were delineated using a10m DEM that had been burned with the 24k NHHD and catchment walled. After automated delineation, watershed received a visual evaluation for reliability. Each quarter mile buffer on an AUIDs was clipped by the watershed for that AUID to remove any non-contributory areas.</SPAN></P></DIV></DIV></DIV></DIV>

Service Item Id: 7db94e8a04fb466bb1690a81fde4fb7a

Copyright Text: The New Hampshire Department of Environmental Services, Watershed Management Bureau, Water Quality Planning Section, should be acknowledged as the data source in products derived from these data.

Default Visibility: true

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 749646.7096883431
YMin: 71091.65036211908
XMax: 1242052.4999999958
YMax: 993035.492842257
Spatial Reference: 102710  (3437)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSDiagonalCross
Color: [170, 255, 0, 255]
Outline:
Style: esriSLSSolid
Color: [0, 0, 0, 255]
Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: false
Supports Having Clause: false
Supports Count Distinct: false
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FID ( type: esriFieldTypeOID, alias: FID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• AUID ( type: esriFieldTypeString, alias: AUID, length: 254 )
• Beach ( type: esriFieldTypeString, alias: Beach, length: 254 )
• Waterbodyn ( type: esriFieldTypeString, alias: Waterbodyn, length: 254 )
• Impairment ( type: esriFieldTypeString, alias: Impairment, length: 254 )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates
